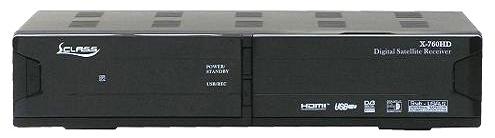

=== HD Digital Satellite Receiver ===
Blind Scan (ブラインドスキャン)機能でトラポンデータのセットは不要。 簡易日本語説明CD付き。 X-760HDの簡単な使用説明
|
||
| Key Feature | ||
| Free To Air & DVB-S2 Compliant | ||
| MPEG 2/4, H.264, For high definition video input and output | ||
| Support By Source,By Nativ TV,480i,480p,576i,576p,720p_25,720p_30,1080i_50,1080i_60 | ||
| Easy-To-Use Graphical User Interface | ||
| Multi languages OSD | ||
| Blind Scan | ||
| SYSTEM | ||
| Main CPU: M3602, 32-bit superalar RISC CPU 396MHZ | ||
| Demodulation QPSK, 8PSK | ||
| Main Memory: 256Mbit * 4 | ||
| Flash Memory: 64Mbit | ||
| Pan Scan, Letterbox | ||
| 7days EPG picture in praphics | ||
| Subtitle, Teletext | ||
| Parental lock | ||
| Last channel memory,Favorite channel programmable | ||
| S/W Upgrade via USB port | ||
| Navigation 7 Keys for menu ok, channel up/down, volume up/down/standby | ||
| Terrestrial input signal | ||
| Input Frequency:950MHz to 2150MHz | ||
| Transmission System: DVB-S2 COFDM | ||
| Channel Bandwidth: 7MHZ/8MHZ | ||
| Input Signal Level:-80dBm to -20dBm | ||
| Antenna Input:75Ohm Female IEC-Connector | ||
| OFDM Spectrum Mode:2K/8K,Hierarchical | ||
| Modulation Modes:1/32, 1/16, 1/8, 1/4Active Symbol Duration | ||
| FEC Modes: Rate 1/2, 2/3, 3/4, 5/6, 7/8 | ||
| Audio Decoding | ||
| MPEG-1/2 layerI/II,AC3/HE-AAC/AC3+ | ||
| Frequency Response: 20Hz/20KHz | ||
| Analog Audio Output:Stereo R/L | ||
| Digital Audio Output: HDMI/coxial | ||
| Video Decoding | ||
| AVC,MPEG2/4,H.264 MP@ML/HL | ||
| Display Aspect Ratio: 16:9/4:3 | ||
| PAL/NTSC video output support | ||
| HD Digital Video Output: HDMI output support 576i,576p,720p_60,1080i_60 | ||
| HD Analog Video Output: YPbPr output support 576i,576p,720p_60,1080i_60 | ||
| SD Video Output:Composite Video(CVBS) | ||
| Input and output | ||
| RF input & loop through | ||
| USB 2.0 host interface | ||
| HDMI | ||
| YPbPr+audio R/L | ||
| SPDIF(coaxial) | ||
| POWER | ||
| POWER: AC 110-240V 50/60Hz | ||
| Max< 15W | ||
| Dimension | ||
| 260(W) x 176(D) x 58(H) | ||
| Weight | ||
| 1.2Kg | ||
