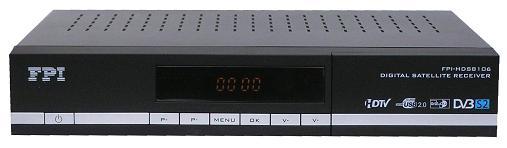

=== HD Digital Satellite Receiver ===
衛星とトラポンデータはすでにセットされています。 簡易日本語説明CD付き。 HDS8106の簡単な使用説明
|
||
| Tuner | ||
| Frequency | 950-2150MHz | |
| Level | -65～-25dBm | |
| lmpedance | 75Ω | |
| LNB Supply | 13V/18V/OFF,400mAmax. | |
| Channel Decoding | ||
| Standard | DVB-SEN300421 | |
| Demodulation | QPSK,8PSK | |
| SymbolRate | 2.0-45MS/s | |
| Demultiplexer | ||
| Standard | lSO/lEC 13818-1 | |
| Audio Decoding | ||
| Standard | lSO/lEC13818-2 | |
| Channel | Mute,Left,Right and Stereo | |
| Decoding | MPEG-1 & MPEG-2 LayerⅠ and Ⅱ | |
| Video Decoding | ||
| Standard | lSO/lEC 13818-2,MPEG-2 MP@ML,MPEG-4 AVC/H.264 HP@L4 | |
| Resolution | 1920x1080p,1920x1080i,1280x720p,720x576p | |
| Power Supply | ||
| lnput Voltage | 100-240V～50/60Hz | |
| Power Consumption | 22Wmax. | |
| Passive Standby Power Consumption | 0.5Wmax. | |
| Physical Characteristics | ||
| Size | 290mm(L)x235mm(W)x60mm(H) | |
| Weight | 2kg | |
| Operation Temperature | 0℃～40℃ | |
| Storage Temperature | 40℃～+60℃ | |
| Storage Humidity | ≦93% | |
